What are cover shoes and flange covers used for?

Cover shoes and flange covers are small decorative collars that slip around the base of a baluster or picket where it meets the floor, stair tread, or bottom rail. Their purpose is to conceal the installation hole and any gap between the bar and the surface, producing a clean, finished appearance.

What is the difference between a flat shoe and an angled shoe?

A flat shoe sits level and is used on horizontal surfaces such as floor landings, balconies, and the starting tread at the bottom of a stair. An angled or rake shoe is pitched to sit flush against the sloped surface of a stair run. Using the correct shoe for the application ensures a tight, flush fit.

How are cover shoes secured?

Most shoes have an integrated set screw that tightens against the baluster bar to hold the shoe in place. Alternatively, shoes can be secured with a small amount of structural epoxy around the base for a gap-free finish. The set screw method is faster; epoxy produces a cleaner visual result.

What is a split shoe, and when is it used?

A split shoe comes in two halves that wrap around an already-installed baluster from the outside, held together by set screws. Split shoes are used when the railing is already installed and you need to add a shoe without removing the baluster — ideal for retrofitting or upgrading an existing installation.

What is a coped drive-on connector?

A coped drive-on connector is a fitting that joins a horizontal rail to a vertical post without welding. The fitting is coped — pre-cut at an angle — to match the curve of the post and is driven onto the post under pressure, creating a tight mechanical joint. This connection method is faster than welding and does not require grinding or finishing.

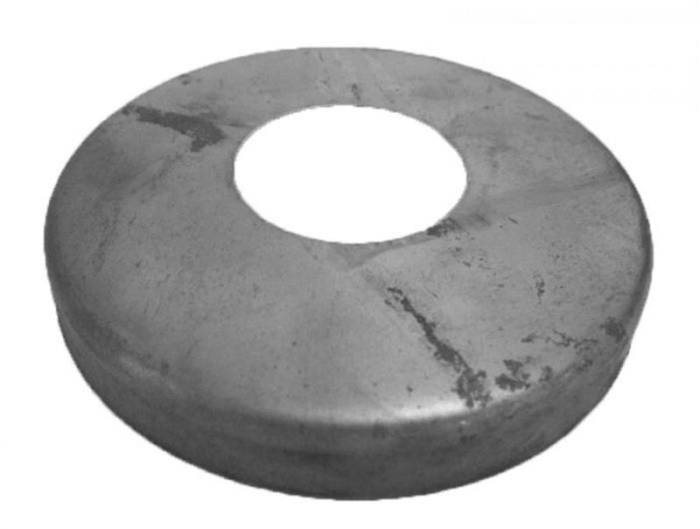

What is a pipe flange used for?

A pipe flange is a flat base fitting that attaches to the bottom of a pipe post, providing a flat mounting surface for fastening the post to a floor, wall, or structural member. Flanges can be wall-mount or floor-mount style and are typically secured with lag bolts or anchor bolts depending on the substrate.

Can pipe accessories be used on exterior handrail systems?

Yes. Steel pipe accessories used outdoors should be primed and painted or powder coated along with the rest of the handrail system. Joints between fittings and pipe should be sealed with a compatible primer or caulk to prevent moisture from entering the joint and causing corrosion from inside.
